100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer

Product Categories
Qingdao Honghesheng Industry Co., Ltd.
Contact Now

100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer

Brand Name : HHS

Model Number : XLB50-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 5000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Heating : electricity , steam heating , conduction oil heating .

Weight : 3000 kg

advantage : high production

Contact Now

100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer Equipment

Rubber Ring Vulcanizing Machine

Main use:

The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine.We have both column and frame structure.

It also suitable for O ring, the key products such as cell phone, keyboard, remote-control,sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food, health and medical treatment.

Advantage:

1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high –quality materials.

2 Hydraulic station and electric cabinet are Located in both sides of the main engine.

3 Conveniently operations

4 Without oil spilling or off pressure.

5.Excellent reputation

6 CE Standards and ISO9001 SGS Certification

Prameter For Reference

Model XLB-25T XLB-50T XLB-100T
Plate Size 350×350mm 400×400mm 450×450mm
Working Layer 1 layer (can be added by 1)
Plate Distance Single layer 75-280mm (optional); Double layer 110mm
Maximum Hydraulic Pressure 16Mpa 16Mpa 16Mpa
Cylinder Diameter 152mm 200mm 285 or 300mm
Maximum Temperature 200 ℃
Motor Three-phase motor
Structure Four-post type
Power(each layer of hot plate) 2400W 2700W 3000W
Weight About 700kg
Voltage 380V
Size 1230*620*1300mm
Special Requirements Customized according to requirements
Standard Accessories Host
Optional Heating plate 1 layer; rubber sample preparation mold; plastic sample preparation mold; automatic decompression; plastic products
plus water cooling
Prepared by Customer No. 46 Great Wall hydraulic oil : 24kg or 16L/two barrels;
6 square or 8 square, 3+2=5 core waterproof wire (with grounding);

We can design kinds of non-standard press according to your requirement.

Please tell us your required total pressure, heating platen size, working layer, daylight distance and piston stroke.

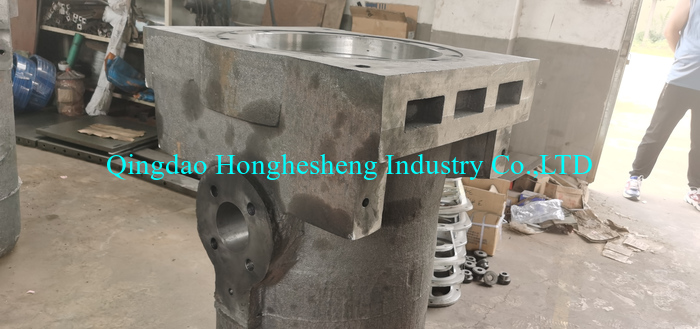

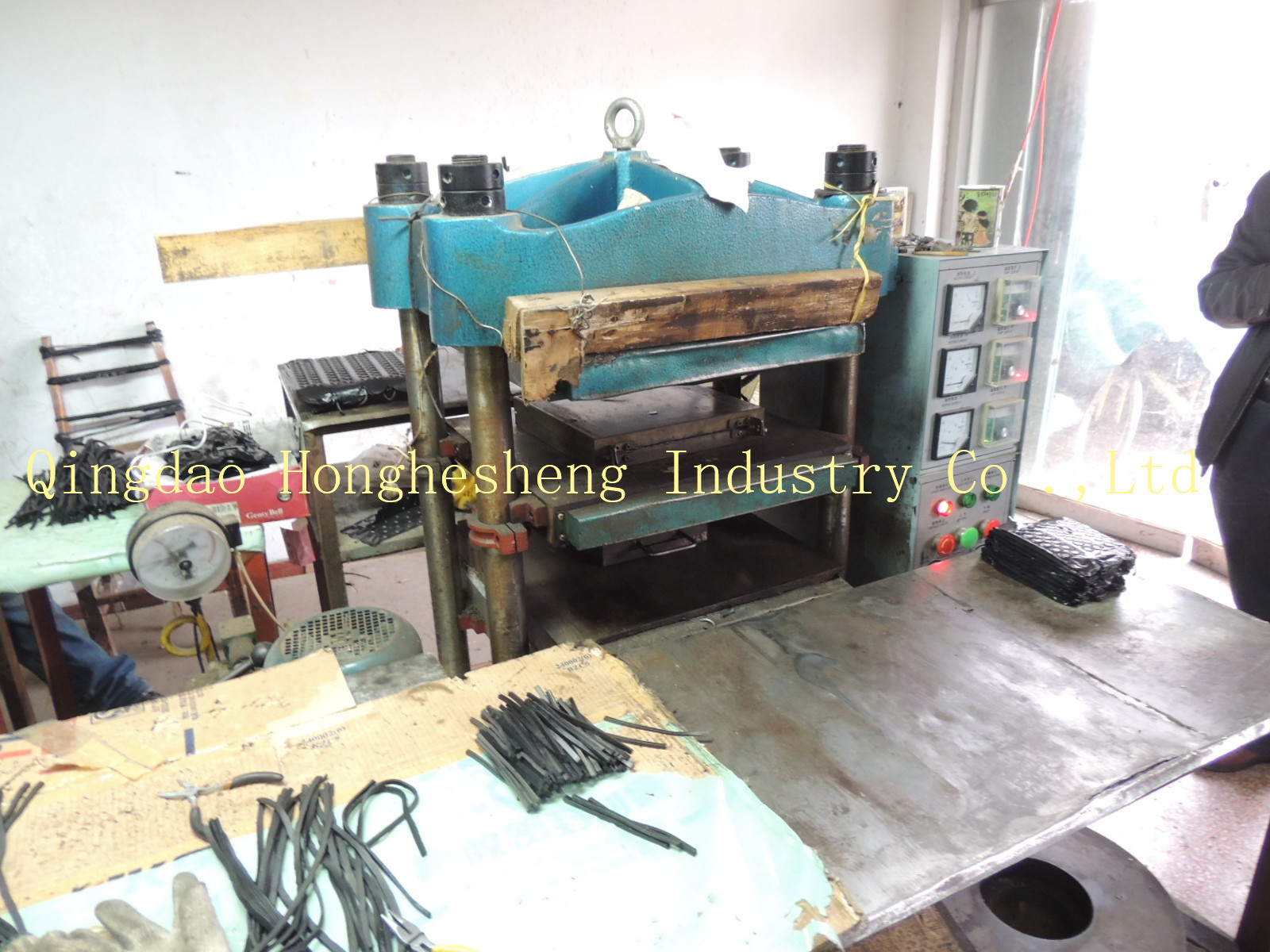

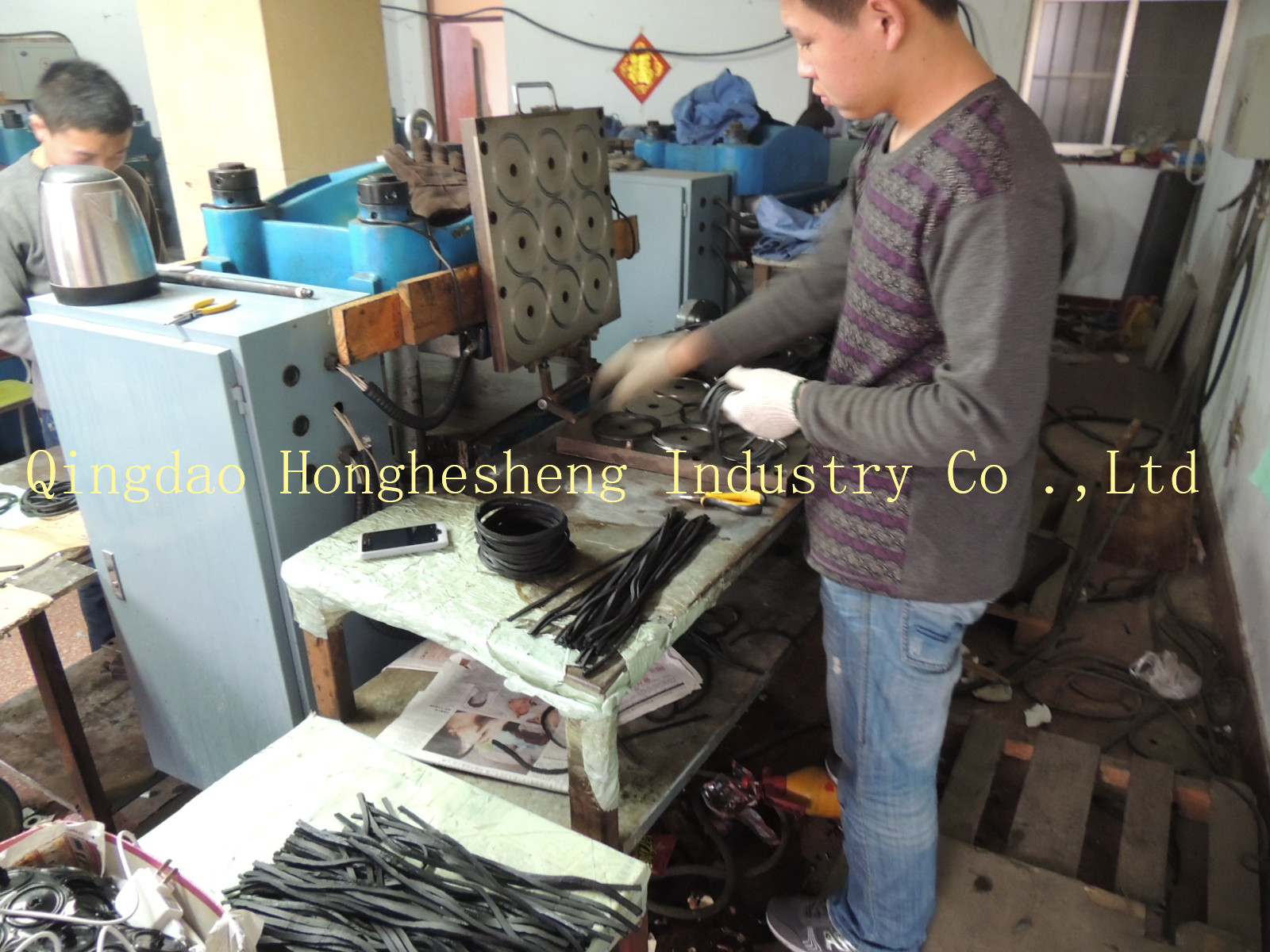

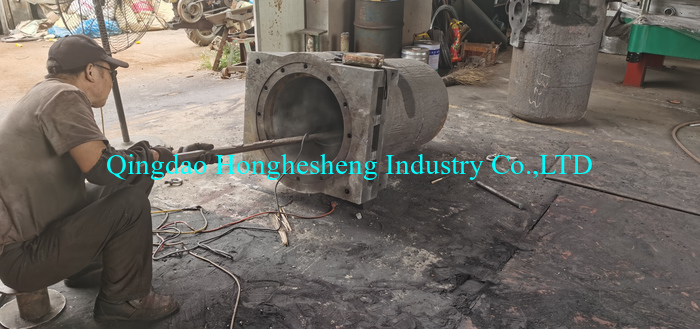

Detailed Pictures

100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer

100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer

100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer100T Rubber Ring Vulcanizing Machine 50 Tons Rubber Plate Heating Vulcanizer
